P-LEG Parts

Spare part number

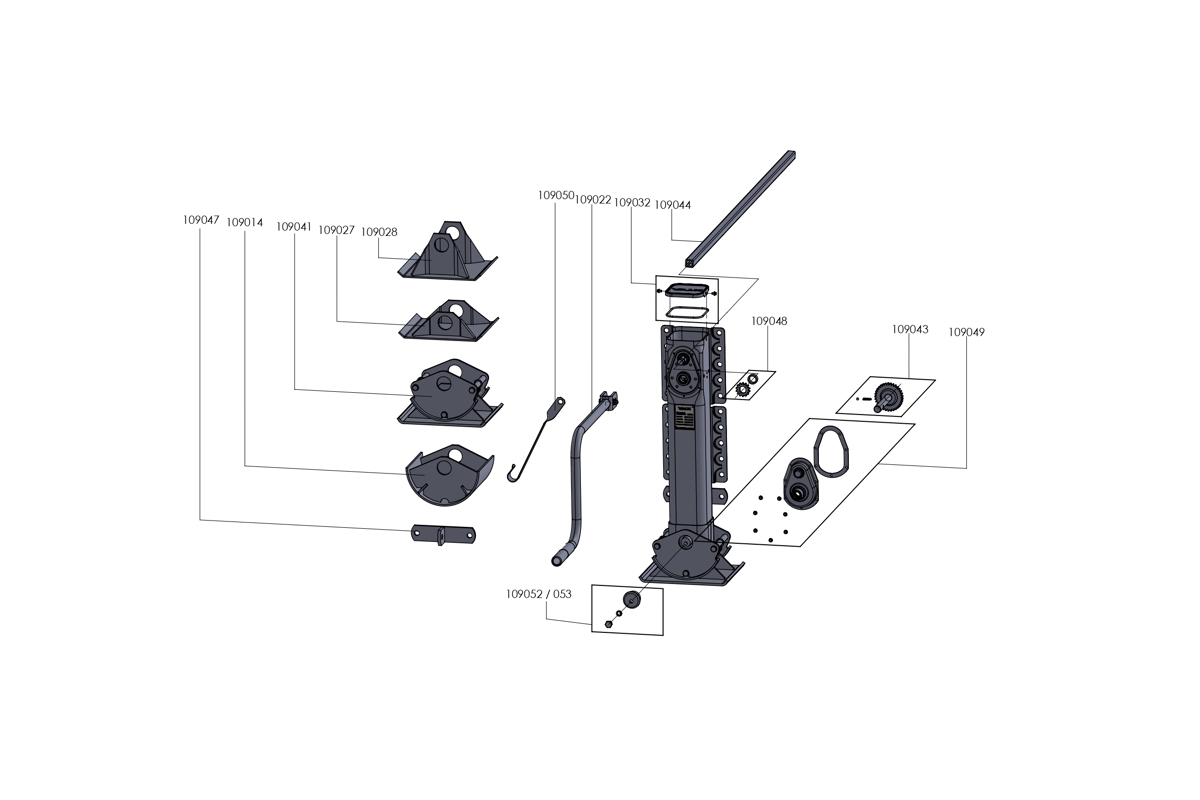

Fw36 Leg Poster V2 (1) Page 0001
Click to enlarge
Position Number Article Number Article Name Specifications
109 70 109 014 Shoe A e-coat
109 70 109 022 Crank universal L=465
109 70 109 027 Shoe LT e-coat
109 70 109 028 Shoe T e-coat
109 70 109 032 Top cover set -
109 70 109 041 Shoe S e-coat + powdercoat
109 70 109 043 Gear shaft assy set -
109 70 109 044 Connection rod L=1500
109 70 109 047 Bolt on bracing e-coat + powdercoat
109 70 109 048 Small gear set -
109 70 109 049 Gear box cover set -
109 70 109 050 Crank holder e-coat + powdercoat
109 70 109 052 Shoe fasteners set tapered 2x Tapered plug, 2x M12 Bolt, 2x M12 Washer
109 70 109 053 Shoe fasteners set straight 2x Straight plug, 2x M14 Bolt, 2x M14 Washer
109 70 109 065 Spring Shoe S galvanised
